    Plastic Industrial Low Dew Point Molecular Desiccant Honeycomb Dehumidifying Dehumidifier Dryer with Good Drying Effect

    Ask Lasest Price
    Brand Name : ORSTE
    Certification : CE, ISO, SGS
    Model Number : ODD-20/40H ~ ODD-1200/700H
    Price : USD 3400 / SET
    Delivery Time : 7-15 days
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    • Product Details
    • Company Profile

    Plastic Industrial Low Dew Point Molecular Desiccant Honeycomb Dehumidifying Dehumidifier Dryer with Good Drying Effect

    Plastic Industrial Low Dew Point Molecular Desiccant Honeycomb Dehumidifying Dehumidifier Dryer with Good Drying Effect


    Plastic Dryer, Dehumidifier, Dehumidifying Dryer, Industrial Dehumidifier, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine


    NAMING PRINCIPLE

    ODD-xxx/xxxH

    ① ② ③

    ① Orste Dehumidifying Dryer

    ② Hopper Capacity (L)

    ③ Dehumidifying Air Quantity (m3/hr), H: Honeycomb


    FEATURES

    1. The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.

    2. Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.

    3. Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.

    4. Compact in size for ease of movement.

    5. Microprocessor is standard equipment, ensures convenient operation.


    FUNCTIONAL SCHEME

    The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.


    PARAMETERS

    Model

    ODD-

    Regen. Heater (kw)

    Regen. Blower (kw)

    Drying Heater (kw)

    Drying Blower (kw)

    Dry Air Volume (m3/hr)

    Insulated Hopper (L)

    Dimension H*W*D (mm)

    Weight (kg)

    20/40H

    4

    0.2

    4

    0.12

    40

    20

    1260*960*860

    150

    40/40H

    4

    0.2

    4

    0.12

    40

    40

    1260*960*860

    165

    80/40H

    4

    0.2

    4

    0.12

    40

    80

    1650*1060*860

    190

    120/80H

    3

    0.2

    6

    0.75

    80

    120

    1780*1220*855

    250

    160/80H

    3

    0.2

    6

    0.75

    80

    160

    1740*1220*855

    255

    160/120H

    3

    0.2

    6

    0.75

    120

    160

    1740*1220*855

    265

    230/120H

    3

    0.2

    6

    0.75

    120

    230

    2010*1220*855

    295

    300/200H

    4

    0.4

    12

    1.5

    200

    300

    2040*1450*1050

    420

    450/200H

    4

    0.4

    12

    1.5

    200

    450

    2040*1450*1050

    550

    600/400H

    7.2

    0.75

    18

    3.75

    400

    600

    2380*1745*1255

    620

    750/400H

    7.2

    0.75

    18

    3.75

    400

    750

    2610*1745*1255

    650

    900/700H

    10

    1.5

    24

    5.5

    700

    900

    2640*2140*1380

    830

    1200/700H

    10

    1.5

    24

    5.5

    700

    1200

    3070*2140*1380

    870

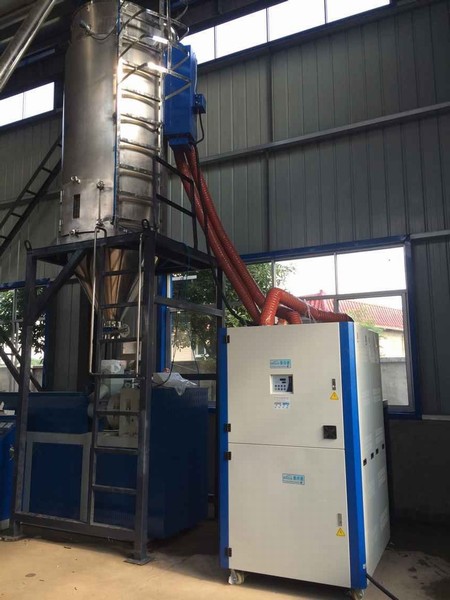

    Application Cases
