    Plastic Twin Tower Desiccant Industrial Dry Air Dehumidifying Dehumidifier Dryer OTD-1400 Blue Color

    Ask Lasest Price
    Brand Name : ORSTE
    Certification : CE, ISO, SGS
    Model Number : OTD-1400
    Price : USD 5000 / SET
    Delivery Time : 7-15 days
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    • Product Details
    • Company Profile

    Plastic Twin Tower Desiccant Industrial Dry Air Dehumidifying Dehumidifier Dryer OTD-1400 Blue Color

    Plastic Dehumidifier, Dehumidifier, Industrial Dehumidifier, Desiccant Dehumidifier, Desiccant Dryer, Dehumidifying Dryer, Dry Air Dryer

    NAMING PRINCIPLE

    OTD – xxx
    ① ②
    ① Orste Twin-tower Desiccant Dehumidifier
    ② Drying Air Quantity (m3/hr)

    FEATURES

    • Adopt German Simens PLC Program Controller and Temp. module.
    • Adopt large flow blower which has a better dehumidifying effect than normal blowers.
    • Unique dual-tower molecular sieve design achieves good effect through dehumidifying of molecular sieve by hot air, energy-saving and efficient.
    • Equipped with return air filter ensures no contamination to the molecular sieve.
    • Auto-adjust dry air quantity and temp. according to usage of material, prevent over-heating or thermal degradation of plastic resin.
    • Dew point can be as low as -70oC.

    APPLICATION

    OTD Twin-tower Desiccant Dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -70oC, the largest of which can provide dry air up to a quantity of 3,800 m3/hr.

    PARAMETERS

    Model OTD-

    1400

    1900

    2000

    2700

    3800

    Rege. Heater (kw)

    22.8

    Rege. Blower (kw)

    3

    Process Heater (kw)

    64

    96

    80

    96

    128

    Process Blower (kw)

    12.5

    20

    8.5*2

    12.5*2

    20*2

    Drying Air Quantity (m3/hr)

    1400

    1900

    2000

    2700

    3800

    Pipe Dia. (inch)

    5”

    5”

    6”

    8”

    12”

    Dimension

    H (mm)

    2365

    2365

    2365

    2365

    2365

    W (mm)

    1505

    1505

    1505

    1505

    1905

    D (mm)

    1800

    1800

    1800

    1800

    1800

    Weight (kg)

    780

    810

    825

    880

    925

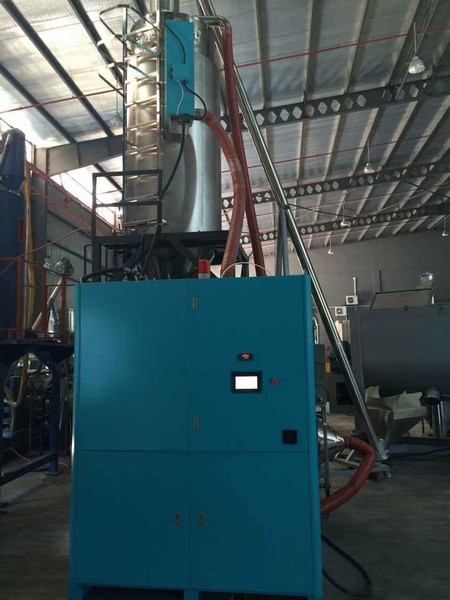

    APPLICATION CASES

    OTD Twin-tower desiccant dehumidifiers features in lowest dew point with the driest air to achieve the best drying effect for hygroscopic plastic resins, like PET. It can achieve the lowest dew point of less than -70 degrees, but it consumes more energy than the honeycomb rotor dehumidifier to get a similar drying effect. It is suitable for the plastic process which needs fast-drying and have good value-added products.
