    Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9

    Ask Lasest Price
    Brand Name : ORSTE
    Certification : CE, ISO, SGS
    Model Number : OOD-5~OOD-20
    Price : 1,200~2,000 USD/Set
    Delivery Time : 7-15 days
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    • Product Details
    • Company Profile

    Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9

    “OOD” Orste Oven Dryers


    NAMING PRINCIPLE


    OOD - xxx

    ① ②

    ① Orste Oven Dryer

    ② Quantity of Trays


    FEATURES

    • Accurate P.I.D temperature controller to achieve even drying effect.
    • Air-proofed insulated door can effectively avoid heat loss to reduce energy consumption
    • Stainless steel tray and liner bring no contamination to materials. OOD series can dry several materials at the same time, time-saving and efficient.
    • 24 hours timer which is easy to operate to preset the drying time.
    • Multilevel protection measures like overheat protector and alarm light can reduce mechanical and human error accidents.

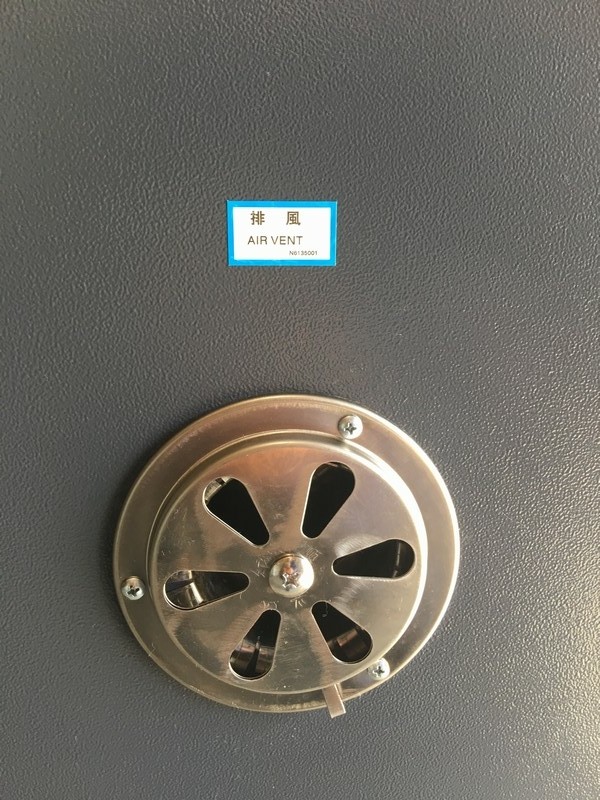

    • Adjustable air inlet and outlet design, air volume can be adjusted according to customer’s actual needs.
    • Equipped with ORD-H Dehumidifier, can effectively improve drying effect and shorten drying time.

    OPTIONS


    Flanges of air inlet and outlet


    Application


    OOD series of oven dryers are mostly used for simultaneous drying of different kinds of polymers in small quantities or for drying materials for trial molding. For tempering after plastic molding, it can increase product tenacity and improve product quality. The oven dryer can also be applied in preheating and drying of agricultural and food (grain, garlic, tea, and etc.), electric motor and part, electroplating, pharmaceutical, paint, printing and others.


    Functional Scheme


    Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9

    Parameters

    ModelOOD-5OOD-9OOD-20

    External dimension

    L*W*H (mm)

    820×630×1260820×630×1480820×1500×1750

    Internal dimension

    L*W*H (mm)

    500×600×600500×600×900500×1150×1200
    Motor Power(kw)0.3750.3751.5
    Heater (kw)4.566*2
    No. of Trays5920

    Tray Dimensions

    L*W*H (mm)

    600×500×50600×500×50600×500×50
    Capacity (kg)5090200
    MaterialSUS304 stainless steel plate
    Temperature range40℃~180℃
    Accuracy±5%
    Weight (kg)148178415

    We reserve the right to change parameters without prior notice.


    Notes:

    (1) For the best drying effect, please choose the OOD model according to 90% of the capacity.

    (2) For the benefit of heat dissipation of motor and spare parts, please do not place any objects on the top of the OOD oven dryer.

    (3) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.

    (4) Power: 3ф, 230/400/460/575VAC, 50/60Hz.


    Machine Details


    Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9Plastic Cabinet Tray Oven Dryer for plastic drying Machine OOD-9
