    Plastic Material TPU PA PET PC Honeycomb Desiccant Rotor Dehumidifier Dehumidifying Dryer with low dew point

    Ask Lasest Price
    Brand Name : ORSTE
    Model Number : OCD-300/200H
    Certification : CE, ISO, SGS
    Price : USD 8891.95 PER SET
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Plastic Material TPU PA PET PC Honeycomb Desiccant Rotor Dehumidifier Dehumidifying Dryer with low dew point

    NAMING PRINCIPLE
    OCD – xx/xxxH
    ① ② ③
    ① Orste “Three-in-one” Compact Dryer
    ② Hopper Capacity (L)
    ③ Dehumidifying Air Quantity (m3/hr)
    H: Honeycomb Rotor Type


    Product Features

    • The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.
    • OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.
    • The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.
    • Transparent window design for filter makes it convenient to monitor the condition of filter.
    • Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.
    • High-density return air filter ensures no contamination to the material in the conveying of materials.
    • For models below OCD-450/300H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.


    Application
    ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 oC under ideal conditions.

    Product Specification / Parameters

    Model OCD-20/40H40/40H80/80H120/80H160/120H230/120H300/200H450/200H600/400H750/400H
    Drying System
    Hopper Capacity (kg)12255075100150200300400500
    Drying Heating Power (kw)44446612121818
    Drying Blower Power (kw)0.40.40.70.70.70.71.51.53.753.75
    Dehumidifying System
    Dehumidifying Air Quantity (m3/hr)40408080120120200200400400
    Regenerative Heater Power (kw)2.52.52.52.52.52.55.45.47.27.2
    Regenerative Blower Power (kw)0.20.20.20.20.20.20.40.40.750.75
    Feeding System
    Feeding Blower Power(kw)0.750.751.11.11.11.11.51.52.22.2
    Dia. of Material Pipe (inch)1.51.51.51.51.51.51.51.51.51.5
    Dia. of Return Air Pipe (inch)22222.52.52.52.533
    OMH (L)7.57.57.57.57.51212121230
    OPH (L)333337.57.57.51212
    DimensionH (mm)1490187020102100226023702370241025202570
    W (mm)1000105011801180134013401440146016451645
    D (mm)73073078078081081094094011451145
    Weight (kg)280295325340505515570610650700

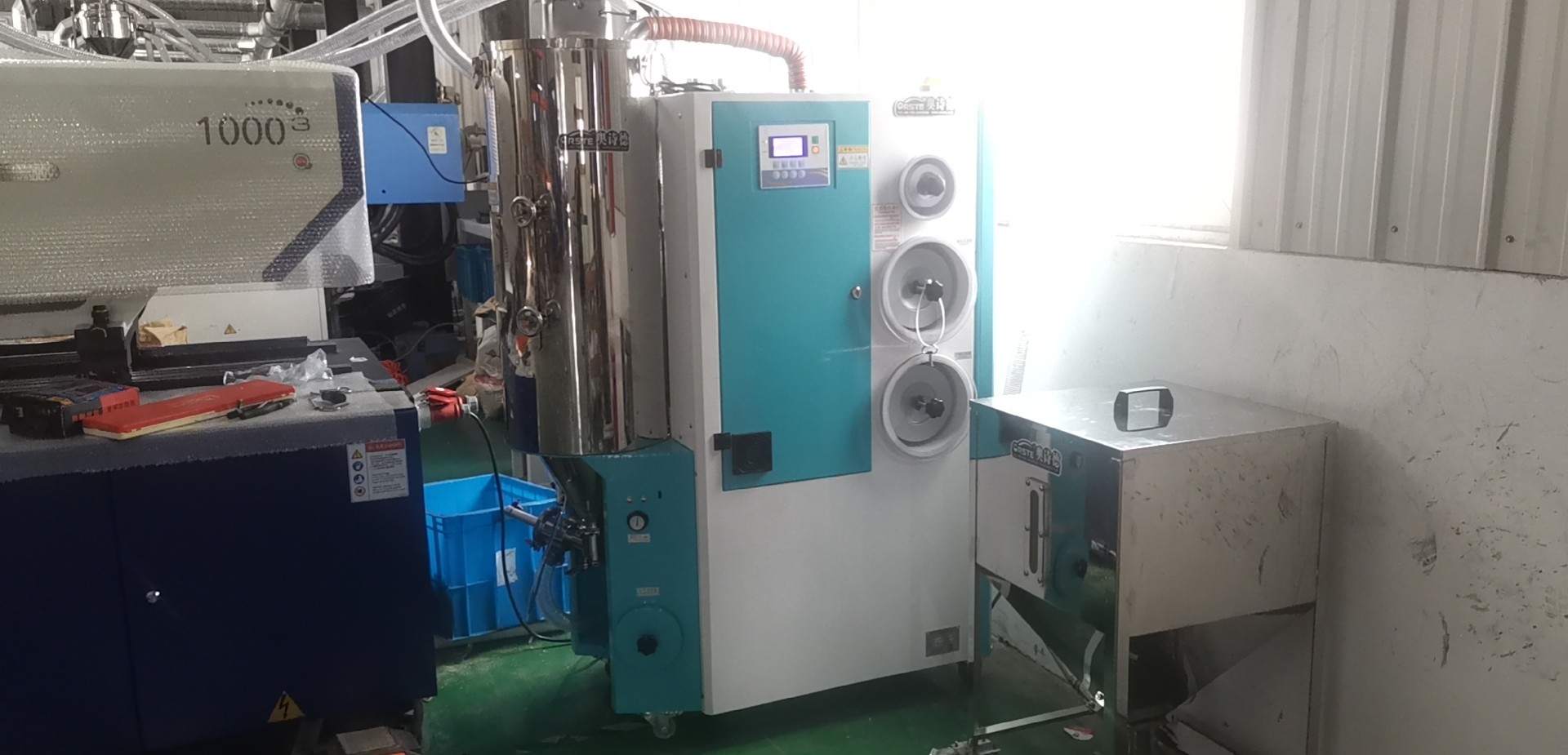

    Application Cases

    Plastic Material TPU PA PET PC Honeycomb Desiccant Rotor Dehumidifier Dehumidifying Dryer with low dew pointPlastic Material TPU PA PET PC Honeycomb Desiccant Rotor Dehumidifier Dehumidifying Dryer with low dew pointPlastic Material TPU PA PET PC Honeycomb Desiccant Rotor Dehumidifier Dehumidifying Dryer with low dew point
