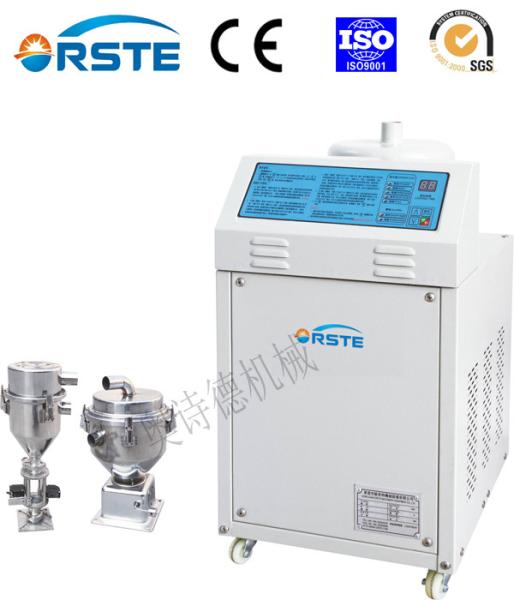

    Loading Machine Equipment Detachable Automatic Vacuum Auto Loader OAL-S Gray Color Large Flow Blower

    Ask Lasest Price
    Brand Name : ORSTE
    Certification : CE, ISO, SGS, TUV
    Model Number : OAL-1.5S ~ OAL-3S
    Price : USD 890 / SET
    Delivery Time : Within 30 Days
    Payment Terms : T/T, L/C, Wester Union
    Supply Ability : 1200 SETS / YEAR
    • Product Details
    • Company Profile

    Loading Machine Equipment Detachable Automatic Vacuum Auto Loader OAL-S Gray Color Large Flow Blower

    Loading Machine Equipment Detachable Automatic Vacuum Auto Loader OAL-S Gray Color Large Flow Blower


    Autoloader, Material Loader, Material Loading Machine, Plastic Loader, Plastic Loading Machine, Plastic Loading Equipment, Vacuum Loader, Automatic Loader, Detachable Loader, Detachable Vacuum Loader, Auto Loader


    NAMING PRINCIPLE

    OAL- xxS

    ① ②

    ① Orste Auto-Loader

    ② Motor Power (HP)

    S: Separate Type


    FEATURES

    • Microprocessor for ease of use and accurate control.
    • Stainless hopper receiver ensures no material contamination.
    • Motor overload protector ensures long service life of motor.
    • OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.
    • Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.
    • Auto De-dusting function is standard equipped for OAL-S series.
    • Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

    FUNCTIONAL SCHEME

    The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.


    PARAMETERS

    Model

    Motor Power

    Conveying Capacity (kg/hr)

    Motor Type

    Vertical Conveying Height (m)

    Horizontal Distance (m)

    Power

    Hopper Capacity (L)

    kw

    hp

    OAL-1.5S

    1.1

    1.5

    200

    Carbon Brush Type

    4

    7.5

    1ф, 230VAC, 50/60Hz

    7.5

    OAL-1S

    0.75

    1

    300

    Induction Type

    4

    8

    3ф, 400VAC, 50/60Hz

    7.5

    OAL-2S

    1.5

    2

    350

    Induction Type

    7

    20

    7.5

    OAL-3S

    2.25

    3

    420

    Induction Type

    9.5

    50

    7.5


    APPLICATION CASES
